  适用于石油、化工、石化、医药等行业，
• 1区、2区危险场所，II类T1-T6组爆炸性气体环境；
• M.
  Applicable to the petroleum, chemical, petrochemical, pharmaceutical and other industries,
  , zone 1, zone 2 dangerous places, II T1-T6 group explosive gas environment;

•


  光源采用LUM.CREE等世界*品牌LED芯片，工作寿命长（5万至10万小时），发光效率高，光色自然纯正，采用横流式驱动电源，输出电流恒定（电流稳定精度±2.5%），确保LED光源及灯具的超长寿命；
• 电源采用浇封恒流电源，电源的输入输出采用隔离式设计，运行时不会产生电弧、火花和危险高温，AC90-264V交流宽电压输入，输出设有短路、过压及热保护，保证防爆灯的高安全性；
• 灯具采用隔离型结构设计，材质为高强度压铸铝，灯具表面经喷塑处理，透明罩采用高强度钢化玻璃，耐腐蚀，美观大方，坚固耐用；
• 抗震动、耐冲击、不易破碎，尤其适用于各类震动性强，搬迁频繁的作业环境；
• Light source using LUM.CREE and other world famous brands of LED chip, long working life ( 50000 to 100000 hours ), high luminous efficiency, color natural pure, using cross-flow type driving power supply, the output current is constant ( current stabilization accuracy + / - 2.5% ), ensure that the LED light source and lighting of the long life;
  " Power sealed constant current power supply, the power input and output by using separate type design, operation does not produce spark and arc, high risk, AC90-264V AC wide input voltage, output is provided with a short circuit, overvoltage and thermal protection, ensuring high safety explosion-proof lamp;
  The lamp adopts isolation type, structure design, material for high strength die-casting aluminum lamp, surface spray treatment, the transparent cover using high strength glass, corrosion resistance, beautiful appearance, firmness and durability;
  , vibration resistance, shock resistance, not easy to be broken, is especially suitable for various strong shake, move frequently operating environment;

•
  名    称：LED防爆灯；
• 型    号:BAT51-LED
• 功    率：45W-100W
• 发光效率：≥100lm/W
• 显色指数：≥80
• 色    温：3000K-6000K（可选）
• 输入电压：AC90V-264V DC12V 24V
• 透 明 罩：高强度钢化玻璃
• 进线螺纹：G3/4
• 电缆外径：φ10～φ12
• 参考重量：13.5KG
• 防护等级：IP67
• 防爆标志：ExdeIIBT6
• 环境温度：常温型：-20度-55度低温型：-45度-55度
• 执行标准：GB3836.1-GB3836.3-GB3836.9
• 安装方式：吸顶式，管吊式，悬臂式，壁挂式，平台式，嵌入式
• 外形尺寸：405*338*225

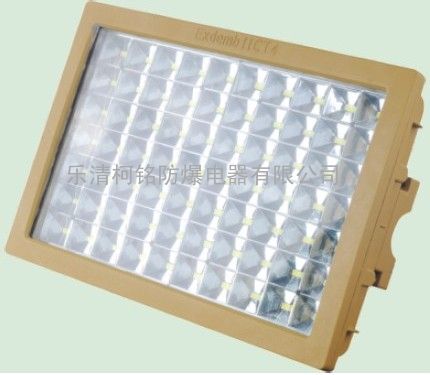

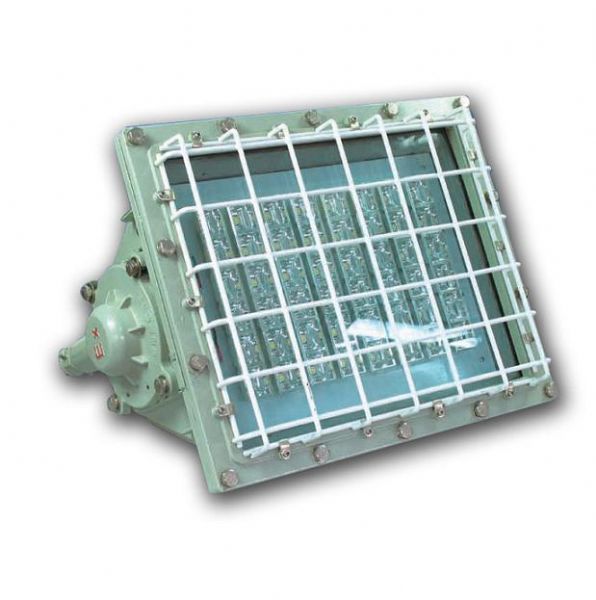

• Name: LED explosion-proof lamp;
  Type, No.: BAT51-LED
  Work rate,: 45W-100W
  Luminous efficiency:, = 100lm / W
  " Color index: 80
  " Color temperature: 3000K-6000K ( optional)
  Input voltage: AC90V-264V, DC12V 24V
  Transparent cover, Ming: high strength glass
  " Into the thread: G3 / 4
  Outer diameter of cable, 10 ~ 12 dia: diameter
  Reference: 13.5KG, weight
  Protection grade: IP67,
  Explosion proof marks,: ExdeIIBT6
  " Environmental temperature: room temperature: - 20 degrees - 55 degrees temperature: - 45 degrees - 55 degrees
  Executive standard: GB3836.1-GB3836.3-GB3836.9,
  " Installation: ceiling type, hanging type, cantilever type, hanging type, platform, embedded
  Shape, size: 405 * 338 * 225
