BAYD防爆标志灯
BAYD防爆标志灯
产品特性：防爆标志灯厂家,防爆标志灯价格,柯铭防爆,BAYD防爆标志灯
产品简介：BAYD防爆标志灯也叫安全出口灯，其内部装LED发光板，使客户能准确的分辨出口在何方向，表面的标志有多种，可供客户根据场地要求选型！
浙江柯铭防爆电器有限公司
详细介绍：
BAYD防爆标志灯产品简介
-
适用于爆炸性气体环境1区、2区； - 适用于可燃性粉尘环境20区、21区、22区；
- 适用于ⅡA、ⅡB、ⅡC级爆炸性气体环境；
- 适用于温度组别为T1~T6的环境；
- 适用于石油采炼、储存、化工、医药、纺织、印染、军工及军事设施等爆炸性危险环境；
- 主要用于在紧急情况下指出安全出口的位置和方向；

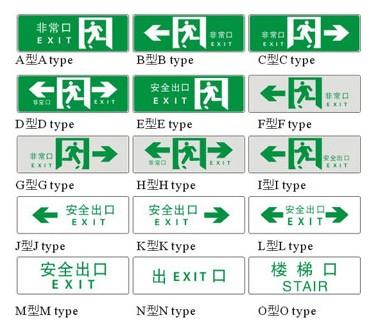

- 15种标志牌图案可选。
-
Applicable to explosive gas environment zone 1, zone 2;
Can be used in flammable dust environment 20, zone 21, zone 22 zone;
Applied to A, B, C grade II II in explosive gas environment;
Apply to the temperature required for T1 ~ T6 environment;
Applicable to the petroleum production and refining, storage, chemical, medicine, textile, printing and dyeing, military and military facilities in explosive environment;
Mainly used in emergency situations that exit position and orientation;
15 signs logo optional.
-
铸铝合金外壳,表面喷塑.。 - 透明标志牌可由用户自由选配。
- 本产品可选用电子发光板式,采用特有的电压效应,在正常工作时几乎不耗电,应急时间在2小时以上,且免维护,降低了运行费用。
- 内装免维护镍镉电池组,在正常供电下自动充电,事故或停电时应急灯自动点亮。
- 钢管或电缆布线均可。
- 符合GB3836-2000，IEC61241标准要求.
-
Cast aluminum alloy shell, surface spray..
The transparent sign can be chose.
This product can use electronic luminescence board, adopt peculiar voltage effect, when in normal work hardly consumes power, emergency time in more than 2 hours, and is maintenance-free, reduce operation cost.
Inside maintainablenickel-cadmium cell in the normal power supply, automatic charging, accident or power failure emergency automatic light.
Steel tube or cable wiring.
With GB3836-2000, IEC61241 standard request.
|
防爆标志 |
防护等级 | 电缆外径(φmm) | 进线口螺纹(G ") | 额定电压 | |
| 正常 | 应急 | ||||
| ExdⅡBT4*ExdeⅡCT4 | IP54 | 10~14 | 3/4 | 220 | 6 |
|
正常 |
应急 |
| 125W自镇汞灯 | 20W碘钨灯 |
| 200W 白炽灯 |
|
应急超动时间 |
充电时间(H) | 应急照明时间(min) |
| 0.3 | 24 | 90 |
